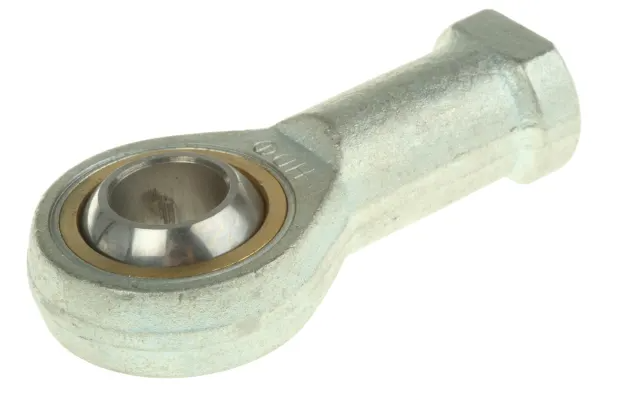

High performance swivel head M20x1.5

Bore Ø d: 20 mm
Internal thread d3: M20 × 1.5

Additional specifications
Overall length l4: 102 mm
Length to eye center h1: 77 mm
Head width d2: 50 mm
Eye width B: 25 mm
Head width (narrow side) C1: 18.5 mm
Static load capacity: 40 kN
Weight: 0.42 kg
