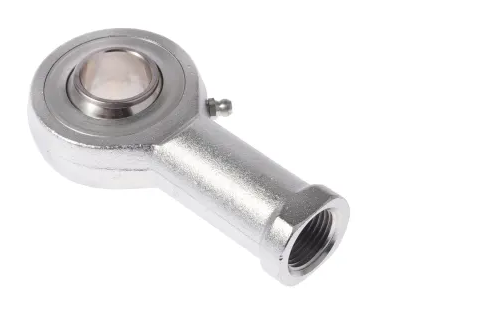

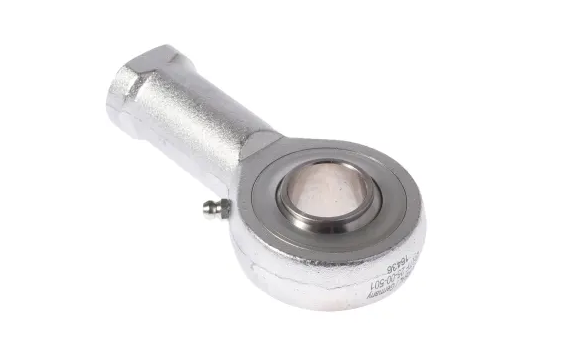

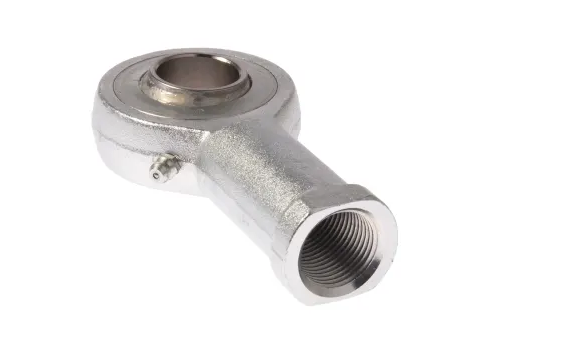

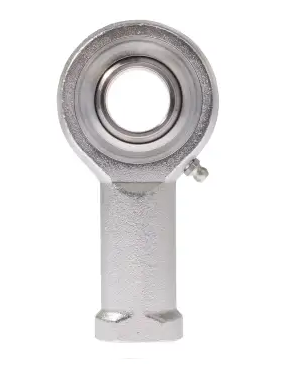

High performance swivel head M30x2

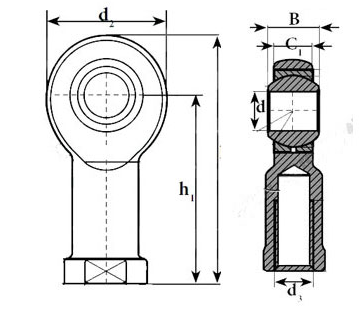

Bore Ø d: 30 mm
Internal thread d3: M30 × 2

Additional specifications
Overall length l4: 145 mm
Length to eye center h1: 110 mm
Head width d2: 70 mm
Eye width B: 37 mm
Head width (narrow side) C1: 27 mm
Static load capacity: 77 kN
Weight: 1.40 kg
